Spec It Once. Build It Anywhere in the Country.
CAD-ready hardwood specs, batch-matched texture, and published material numbers, for architects and engineers writing to a real spec, not a sales sheet.
Enter your email for T3D spec sheets, published material numbers, and sample kit availability. A real person follows up, not a bot.

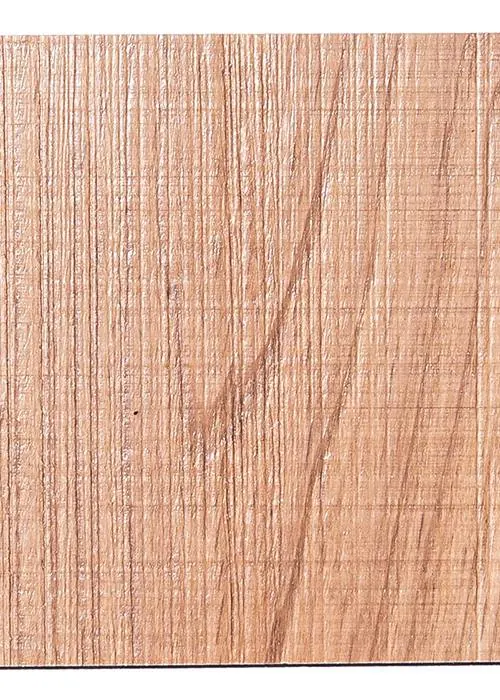

Real texture, cut to your drawing, not a printed pattern.
T3D texture-engineered siding, architectural veneer, and matching edgebanding is machined into solid hardwood and hardwood veneer alike. Send a shop drawing or CAD spec and we mill to it, panel size, texture depth, and species called out to match your set.
Fire rating depends on assembly and finish. Send your project’s code requirement with a sample request and we’ll confirm rated options for that job before it goes into a spec document.
Every run is milled and texture-engineered at our own Rigby, Idaho facility, so the sample kit you request is the same standard the finished order ships on, not a showroom piece from a different supplier.
Vaultwood Core™, when the substrate matters.
Some Snake River Hardwoods engineered veneer products use Vaultwood Core™, a specified premium MDF core standard, as the substrate under the veneer. It’s not something we manufacture ourselves, it’s a third-party material standard we spec and buy to, used under select engineered veneer products, not universally.
Published figures: density 45 to 49 lb/ft³, modulus of rupture 4,500 to 5,500 psi typical (4,000 psi licensing floor) tested per ASTM D1037, face screw hold 275 to 350 lbf, edge screw withdrawal 225 to 285 lbf. Compliance covers ANSI A208.2 moisture and dimensional stability, plus EPA TSCA Title VI and CARB Phase 2 formaldehyde limits, with NAF options available. Full spec sheet at vaultwoodcore.com.
Solid hardwood pieces don’t need an engineered core. That distinction stays clear on every quote, so what’s in your spec is what actually ships.
1 of 2 U.S. plants producing textured hardwood siding and veneer at this scale.
We buy timber by the board foot from trusted suppliers, then do the milling, texturing, sizing, and finishing ourselves at our own 22,500 square foot facility in Rigby, Idaho, on the Snake River. A Heesemann machine does the cross-scoring and texturing. A custom five-axis BAACI mill, built to our own specification, sizes, drills, and textures multiple pieces at once on a single line, which is what keeps a full run batch-matched instead of piece to piece.
That means the sample in your hand and the pallet that ships to the job site came off the same equipment, under the same spec. Read the full craftsmanship story ›
Get the spec sheets and a sample kit before it goes into your drawing set.
CAD specs, shop drawings, and fire-rating requirements are reviewed against your actual project, not a generic cut sheet. Trade pricing is applied at time of order or quote, never a credit account or invoice terms.
Architect and engineer requests get routed to spec sheets and sample kits first, before any pricing conversation.
